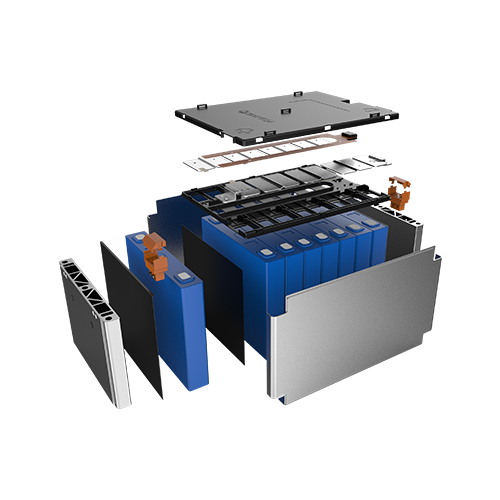

    LBM100-A Series

  • Category:
    Welding Battery Module
  • Browse number:
    805
  • Release time:
    2020-10-24 17:29:18
  • INQUIRY

1. Balanced heat transfer performance, excellent cooling conditions and homogeneity of temperature.

2. Design for application on vehicles, reliable structural strength and stability.

3. Laser welding manufacturing techniques to guarantee stable electronic connection.



Model

LBM013100A

LBM025100A

LBM029100A

LBM032100A

Battery Type

LiFePO4

Module Configuration

1P4S

1P8S

1P9S

1P10S

Nominal Voltage

12.8V

25.6V

28.8V

32.0V

Nominal Capacity

100Ah

Nominal Total Energy

0.13kWh0.25kWh0.29kWh0.32kWh

Electrical Parameters


Voltage Range

11.2~14.4V

22.4~28.8V

25.2~32.4V

28.0~36.0V

Standard Charging Current

50A

Max.Charging Current

100A

Standard Discharge Current

50A

Max.Discharging Current

100A

Mechanical Parameters


Net Weight

~10kg~20kg~23kg~26kg

Dimension (W*D*H)

176.6*204.5*181mm310.5*204.5*181mm344*204.5*181mm377.5*204.5*181mm

Ingress Protection

IP20

Cooling

Natural Cooling

Operation Condition


Environment Temperature

Charge:0℃~55℃/ Discharge:-20℃~55℃/ Storage:-10℃~30℃

Operation Humidity

5~95%,RH

Altitude

< 2000m

Mounting Hole

Circular hole φ8.2 - 4pcs

Design Life

> 10 years







If the size and parameters of the product are changed, the latest information will prevail without further notice.
