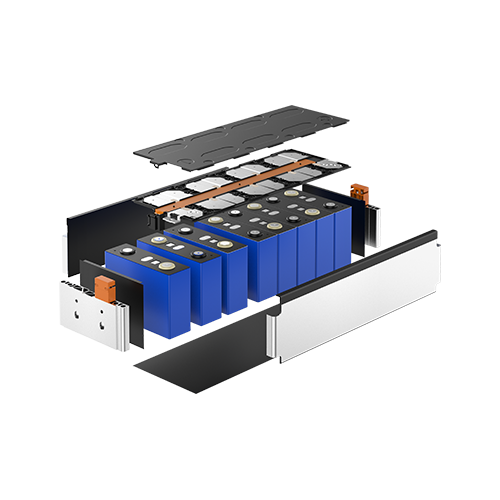

    LBM025100A-B

  • Category:
    Welding Battery Module
  • Browse number:
    230
  • Release time:
    2020-10-24 16:58:19
  • INQUIRY

1. Balanced heat transfer performance, excellent cooling conditions and homogeneity of temperature.

2. Design for application on vehicles, reliable structural strength and stability.

3. Laser welding manufacturing techniques to guarantee stable electronic connection.


Model

LBM025100A-B

Battery Type

LiFePO4

Module Configuration

1P8S

Nominal Voltage

25.6V

Nominal Capacity

100Ah

Nominal Total Energy

0.25kWh

Electrical Parameters


Voltage Range

22.4~28.8V

Standard Charging Current

30A

Max.Charging Current

50A

Standard Discharge Current

30A

Max.Discharging Current

50A

Mechanical Parameters


Net Weight

~17.5kg

Dimension (W*D*H)

435*164*124mm

Ingress Protection

IP20

Cooling

Natural Cooling

Operation Condition


Environment Temperature

Charge:0℃~55℃/ Discharge:-20℃~55℃/ Storage:-10℃~30℃

Operation Humidity

5~95%,RH

Altitude

< 2000m

Mounting Hole

Circular hole φ8.2 - 4pcs

Design Life

> 10 years



If the size and parameters of the product are changed, the latest information will prevail without further notice.
